Hosting a Mastodon Server on Arch Linux

First off, let’s get one thing out of the way. You probably shouldn’t do this. There are already a ton of guides on how to host Mastodon on Debian-based distros. If you’re doing this on a fresh machine, go with Ubuntu 22.04 and use the official guide. Arch isn’t a great server operating system. Its whole deal is being lightweight and getting updates to the user as fast as possible. Servers need over a terabyte to be useful and they don’t update unless it’s necessary. I only did this because I know how to administer Arch and I already had a homelab running Arch with a few services. Regardless, if you aren’t willing to switch, here’s what you need to do.

Prerequisites

Most of what you need to host a mastodon instance is free or easy to acquire. First, the hardware. Mastodon has very low system requirements¹, so this is a great project for your old clunker. It’s still the most expensive part of this setup, but if you’re the kind of person to self-host a mastodon server, you probably have more than 1 PC lying around.

Second thing that doesn’t have a “free alternative” is a domain name. There are a ton of providers out there, but for the sake of convenience I’m going to recommend Cloudflare. We’re going to be using Cloudflare Tunnels to expose the server to the internet, and it’s easier if your domain is already registered there. To reiterate, other providers will work just fine, they’re just harder to setup for this specific use case.

Lastly, you’ll need an SMTP server. This isn’t strictly necessary, but the automated installation still expects you to have one, and setting it up is easier than going without it. Self-hosting an SMTP server is notoriously difficult, so I’d recommend using any service listed in the official docs. I went with Mailgun, but once again, all of them work fine.

The Easy Part

Despite not being supported, the AUR has a mastodon package that handles a lot of the setup for you. There is a second postinstall set of commands you have to run manually, which I’ve written below².

##########################################
### Mastodon Installation Instructions ###
##########################################

### To setup Mastodon, enable and start PostgreSQL and Valkey ###
systemctl enable --now postgresql valkey

### Create the Mastodon PostgreSQL user and grant it the ability to create databases with ###
sudo -u postgres createuser -d mastodon

### Then, run the following commands ###
cd /var/lib/mastodon
sudo chown mastodon:mastodon -R .
sudo -u mastodon corepack enable --install-directory . yarn
sudo -u mastodon RAILS_ENV=production NODE_OPTIONS=--openssl-legacy-provider PATH=./:$PATH bundle exec rails mastodon:setup

### Finally, enable and start all the required services ###
systemctl enable --now mastodon.target

The mastodon setup process will ask you for your domain name and SMTP credentials, so have those ready. It will also provide an admin password, which you need to copy and write down somewhere. In case you didn’t know, you can copy text in the terminal with Ctrl+Shift+C. If you did everything right, you should see your local instance on localhost:3000. However, since this is a very complicated process that requires a lot of customization, something is probably broken. That means we are finally at the fun part.

Troubleshooting

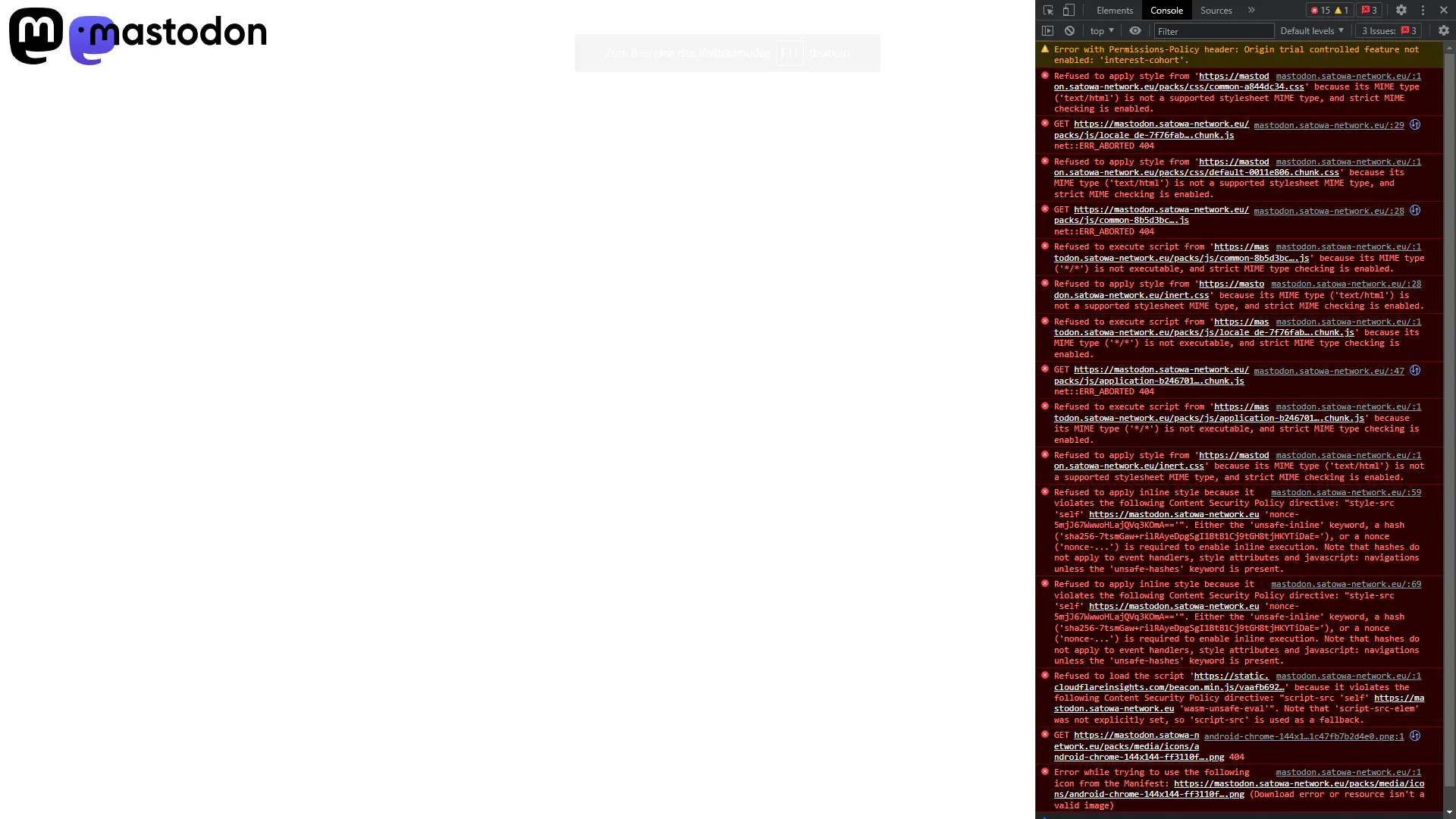

Problem: My browser just shows a mastodon logo and nothing else.

This is a permissions problem where the web server can’t access most of the page. First, check if your mastodon directory is owned by the mastodon user.

cd /var/lib/mastodon && ls -a

You’ll see a bunch of folders, but the one we care about is called “public”. If it’s not owned by mastodon, run sudo chown mastodon:mastodon -R /var/lib/mastodon/. If it still doesn’t work, edit your “.env.production” file and add the line “RAILS_SERVE_STATIC_FILES=true”³.

Check your work!

After every change you make, you should run this command:

sudo systemctl daemon-reload && sudo systemctl restart mastodon-web mastodon-sidekiq mastodon-streaming

Check your changes often, as every fix you apply has the potential to break something.

Another problem you may not have right away but should really fix as soon as you can is file storage. Mastodon stores every asset it serves from this directory: /var/lib/mastodon/public/system. If you keep that folder in your root drive, you might run out of space. Mounting another drive in Linux is a separate ordeal, so for that I’d recommend this guide from GeeksforGeeks. Once you’ve done that, you can run these 2 commands to migrate everything over to the new drive.

###Replace {DRIVE_NAME} with the name of the folder you mounted the drive to.###
sudo mv /var/lib/mastodon/public/system /mnt/{DRIVE_NAME}
###ln is a standard linux utility for creating symbolic links. Basically shortcuts on Windows.###
sudo ln -s /mnt/{DRIVE_NAME}/system /var/lib/mastodon/public/system

Mastodon has strict sandboxing by default, meaning it won’t touch files outside of its directory. Since we want it to do that, navigate to /usr/lib/systemd/system/mastodon-sidekiq.service and comment out the line ProtectSystem=strict by putting a # in front of it. Do the same for /etc/systemd/system/mastodon-web.service.

Those are the only 2 setup problems I ran into, and if you’re lucky the same was true for you. If not, there are plenty of support forums out there, and at this point our setup is mostly identical to a standard Debian-based installation.

Getting Online

You’re server’s definitely connected to the internet at this point, but to federate with other users, you’ll need a public IP address. Most consumer routers don’t support this, and opening up your local area network (LAN) to the wide area network (WAN) is a major security risk. Instead, we’ll be using Cloudflare tunnels to route any request for your server’s url to a specific port on your machine. To start, install Cloudflare’s background service daemon with the following command:

sudo pacman -S cloudflared

Go into your Cloudflare dashboard and click “Zero Trust” on the sidebar. From there, navigate to “Networks -> Tunnels” from a dropdown menu. Hit “New Tunnel” and then select the “Cloudflared” option when prompted. It will prompt once more for a name before showing a command to run on your machine to bind the tunnel to your server. Afterwards, set the tunnel to route the domain you purchased to an HTTPS service with the URL “localhost:3000”. Lastly, you’ll need to put in your router’s public IP address. You can find this by visiting https://whatismyipaddress.com/ and putting the given IPv4 address in your tunnel’s configuration menu under the heading “Private networks”. If you can’t find it, just save your changes, click on the  icon to the right of your tunnel and click “Configure”.

Afterwards, you should be able to reach your server through your domain on any device. There’s only 1 step left to get your mastodon server fully federated: join a relay server. A helpful explanation of their purpose is provided in the mastodon settings under Settings -> Administration -> Relays. A list of open and active relays can be found at this aggregator. Add a few to your server, and you should be able to see posts from other servers in a few minutes.

Maintenance

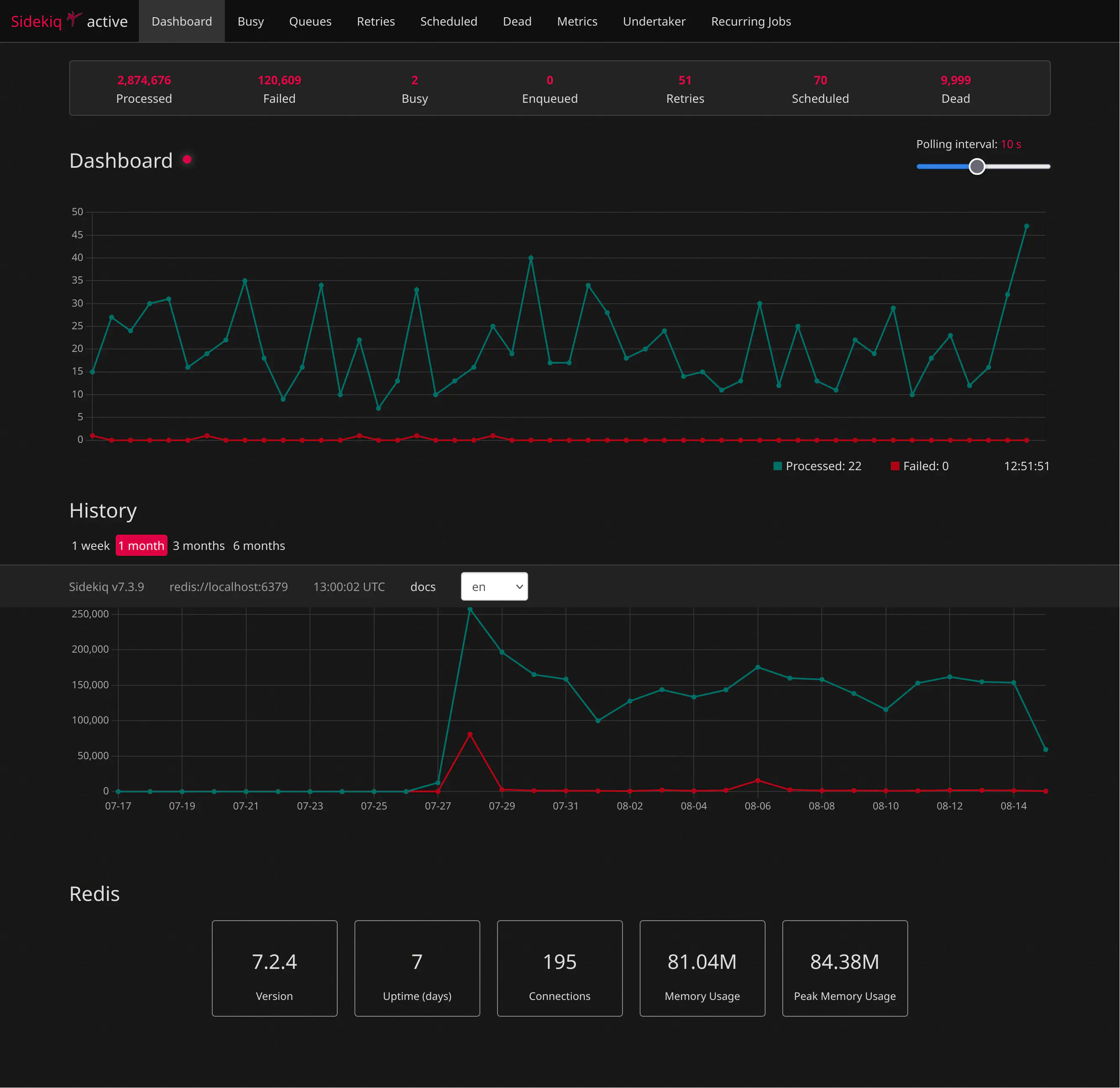

Remember at the start when I said servers don’t update unless they need to? If you’re regularly updating your machine, I suggest adding the line IgnorePkg = mastodon to your /etc/pacman.conf. This will cause pacman to ignore updates and hopefully preserve the stability of this incredibly fragile setup. Other than that, I’d recommend checking your Sidekiq dashboard often. It has its own tab under Mastodon settings and looks like this:

You might notice the huge spike in failed requests near the start, that was from when I forgot to disable sandboxing and kept getting read/write errors. This dashboard is the best way to diagnose what might be wrong with your server. Check it often, at least until you’re confident things are up and running the way you want it.

I’m still early in my self-hosting journey, so I’ll probably update this post in the future with whatever errors I run into in the future alongside their solutions. Until then…

Signing off: Wheelsbot

Arch CAN do that, but that doesn’t mean it SHOULD.
